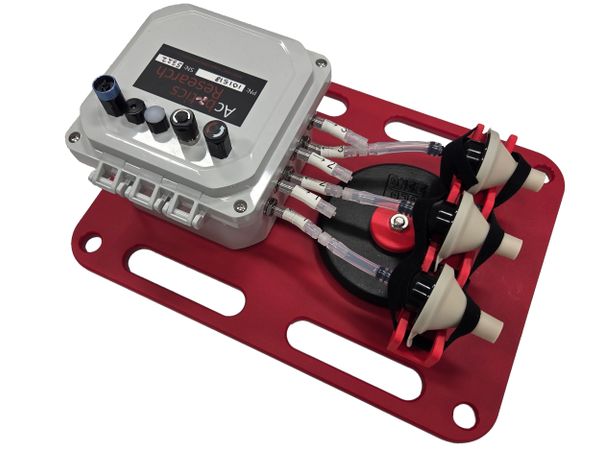

AcSample: In situ Triplicate eDNA SamplerS
Accessible In Situ Sampling
The AcSample was designed for accessible, affordable, filter-flexible, rapid triplicate in situ eDNA sampling. The initial design includes two depth versions (AcSample-5m and AcSample-M) aimed at riverine and coastal sampling; AcSample-5m available now; AcSample-M to be released spring 2026. On recovery, remove and preserve your filter as desired or per manufacturer instructions. Key features include:
- Filters on inlet; Luer lock filter attachment per filter
- 3 independent filter/pump/flow sensor systems for true simultaneous triplicate sampling
- Logging of pressure/temperature/RTC for system, flow rates/current draw per pump
- Configurable pump control, with options for volume-based, time-based, depth-triggered and time-triggered pumping
- Duty cycle mode for extended sampling
- External LED indicator
- Shore cable data offload, charging, and system configuration
Applications and Configuration: AcSample-5m
In Situ Coastal Sampling
In Situ Coastal Sampling
In Situ Coastal Sampling
Use the AcSample-5m for in situ, submerged sampling in coastal waters at depths up to 5 m either as a weighted bottom sampler or attached to a mooring.
Riverine Sampling
In Situ Coastal Sampling
In Situ Coastal Sampling
Triplicate sample in rivers and streams with the entire sampler submerged for streams as shallow as 10 cm, or use as a hand-held sampler.
Bench Sampling
In Situ Coastal Sampling
Long tube sampling
Want triplicate, splash-proof lab filtering? The AcSample is great on the bench as well as the field!
Long tube sampling
Custom Configuration
Long tube sampling
With Smith-root filter holders and specialized tubing, the AcSample can be adapted for over-the side sampling from boats, docks, or beaches.
Custom Configuration
Custom Configuration
Custom Configuration
Need a customized system, more channels, greater depth, different fixturing, bigger battery, or different filters? Contact us and we can build something together!
